Product Parameter
Applicable Industries Construction    works , Energy & Mining
Showroom Location Viet    Nam, Indonesia
Place of Origin Zhejiang,    China
Weight(KG) 18    KG
Warranty 3    months
Marketing TypeOrdinary    Product
Machinery Test ReportProvided
Product Features
  • 01 This Series pneumatic rock drill apply in hard rock on the rock drill operation, it has strong adaptability to the working conditions.

  • 02  The product is energy efficiency, Its components has long life and durable.

  • 03  The product is energy efficiency, Its components has long life and durable.

  • 04 The machice can be generally used with the same type, it can greatly reduce the customer loss for spare part replacement.

Product Display

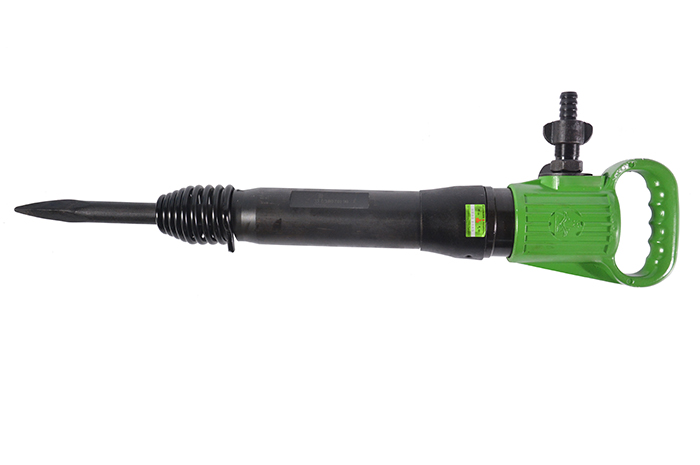

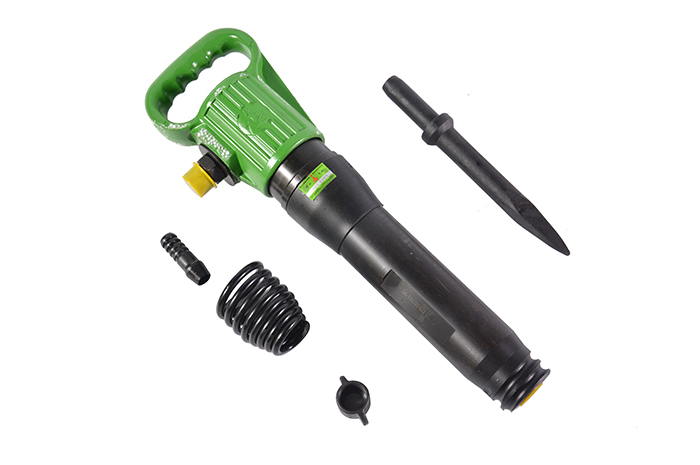

  • Handhold Pneumatic Rock drill

  • Handhold Pneumatic Rock drill

  • Handhold Pneumatic Rock drill

  • Handhold Pneumatic Rock drill

Model List
Item No. HY18YO18Y19AYO20YT24
Rock Hardness F=6-20F=6-20F=6-20F=6-20F=6-20
Piston Stroke 50mm50mm54mm52mm64mm
Cylinder Diameter 58mm58mm65mm64mm70mm
Working Pressure 0.4Mpa0.4Mpa0.4-0.5Mpa0.4Mpa0.5Mpa
Air Consumption 1.4m3/min1.4m3/min2.2-2.58m3/min1.7m3/min2.6m3/min
Drill Pipe Size B22*108mmB22*108mmB22*108mmB22*108mmB22*108mm
Weight 18kg21kg19kg21kg27kg
Package Size(mm) 590*280*180590*280*180600*534*106590*280*180740*310*220
air leg FT100FT100FT100FT100FT140
FAQS
  • Q1:
    Are you factory or trade company?

    A1: We are factory. And we have ourselves trading company.

  • Q2:
    What the exactly address of your factory?

    A2: Our company is located in.Room 201, Building 23, No. 28 Yulong Road,Quzhou Zhejiang

  • Q2:
    Warranty terms of your machine?

    A3: One year warranty for the machine and technical support according to your needs.

  • Q4:
    Will you provide some spare parts of the machines?

    A4: Yes, of course.

  • Q5:
    What about the voltage of products??Can they be customized?

    A5: Yes, of course. The voltage can be customized according to yourequirement.

  • Q6:
    Which payment term can you accept?

    A6: 30% T/T in advanced, 70% T/T against the B/L copy.

  • Q7:
    How long will you take to arrange production?

    A7: 380V 50HZ we can delivery the goods within 7-15 days.Other electricityor other color we will delivery within 25-30 days.

  • Q8:
    Can you accept OEM orders?

    A8: Yes, with professional design team, OEM orders are highly welcome.

  • Q9:
    Which trade term can you accept?

    A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
