DTH Drilling Rig

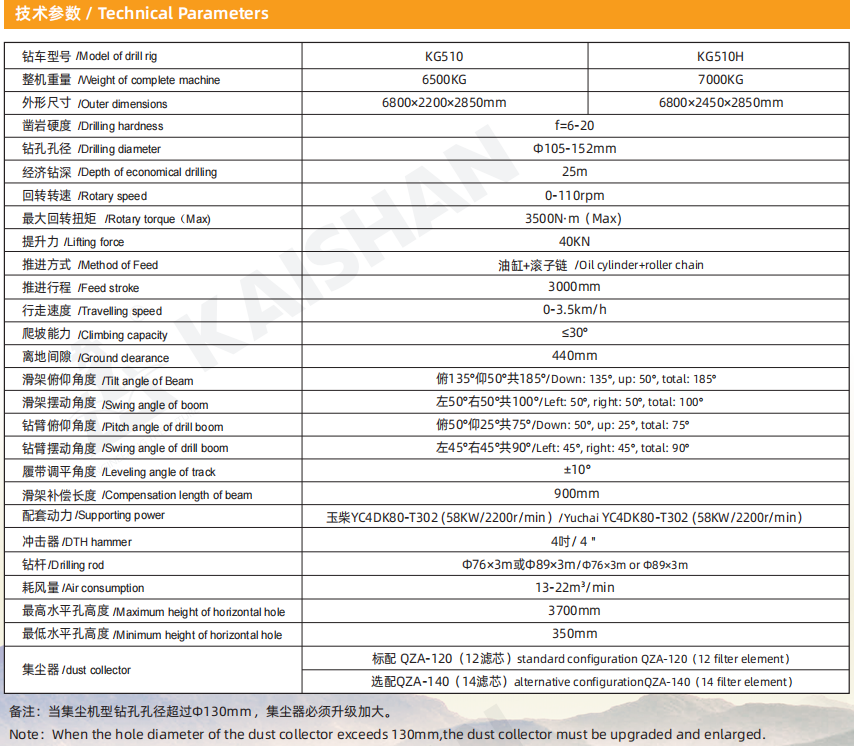

Introduction: The KG510 down the hole dril rig for open use is an improved device in compliance with national reaulations on dieserenineemissions. Equlpped with the Yuchai four-cylinder engine, the dril rig meets national standards for emissions and environment. The folding fame track and four-wheel drive are adopted. Add track leveling cvlinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed, and the lifting oil cylinder and chain are expanded to promote thelifting force and reliability. The thickened profle folder is used for the housing, thus improving its level of intensity and rigidity, and the additional ring makes handling and lifting convenient.

Recommended Air Compressors: LGCY-13/13  KSCY-580/13   LGCY-18/17

Introduction: The KG410H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive is adopted, and track leveling and the tramming motor of the plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limit position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

Recommended Air Compressors: KSCY-550/13、KSCY-580/13

Introduction: The KL510 down the hole drill rig for open use is an improved device in compliance with national requlations on diesel-enaine emissions. Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; and track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position The rotary torque and revolving speed are raised; the propulsion motor and chain are used to raise the lifting force and reliability The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing. thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

Recommended Air Compressors: LGCY-18/17、LGCY-19.5/19、KSCY-750/20

Introduction: The KG420 down the hole drill rig for open use is an imoroved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; and track leveling and the working motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifing-arm hydraulic cylinder enable it to meet the requirements of limiting position. The rotary torque and revolving speed are raised; the propulsion motor and chain are used to raise the lifing force and reliability. The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity, and the additional ring makes handling and lifting convenient.

Recommended Air Compressors: LGCY-18/17、LGCY-19.5/19、KSCY-750/20

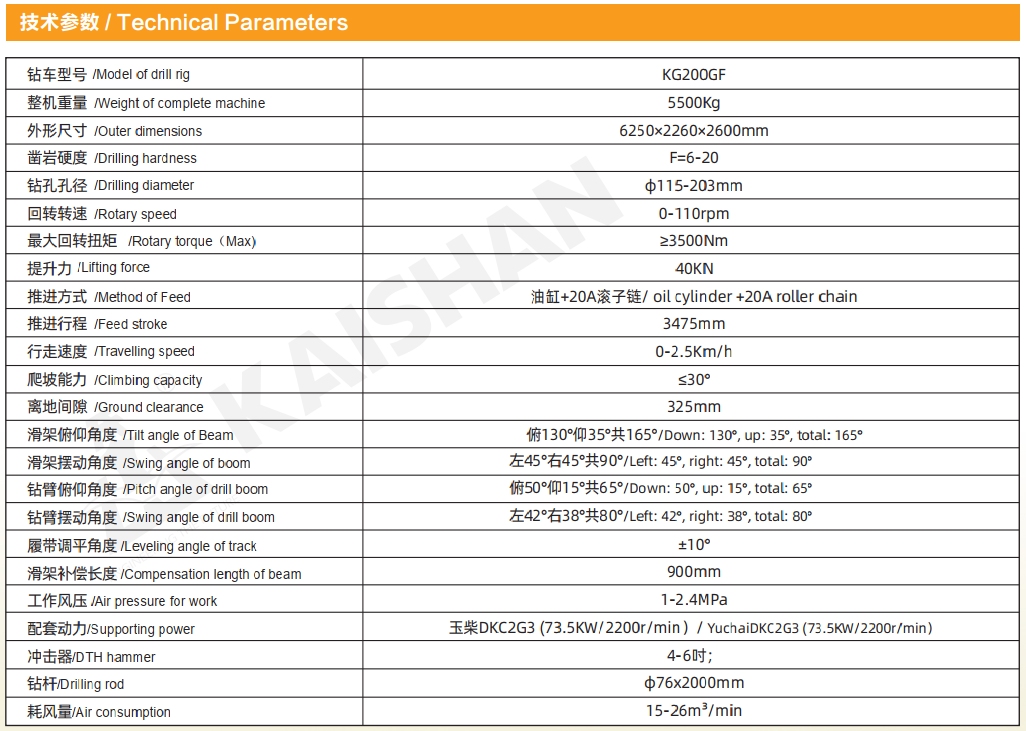

Introduction: The KG200GF photovoltaic driling rig is equipped with Yuchai four-cylinder engine, which is suitable for drllingblasting holes in construction sites such as photovoltaic pile foundation, hydropower project, open-pit mining and road construction withlarge aperture. Equipped with integrated controller, real-time monitoring of drilling rigs operating parameters; The walking chassis adopts the folding track frame and the engineering four-wheel belt, which has the function of track leveling. and is equipped with the enhanced plunger walking motor to improve the working pressure and increase its climbing performance.The propulsive beam is propelled by oil cylinder and 20A roller chain. The upper, middle and lower parts are equipped with high wear-resistant nylon anti-wear press plate to ensure the service life and improve the reliability of drilling operaton. The doube motor gyrator with large reducton ratio provides rotary torque of up to 3500Nm for the drill rigs. At the same time, the hydraulic system is uparaded and the cast iron gear pump with high strength and large displacement is adopted to ensure product quality.The cover shell adopts the thickened profile and the lifting ring is added to facilitate loading and unloading and hoisting. The drilling rigs has the advantages of long service life and stable product performance.

Recommended Air Compressors: LGCY-22/19
