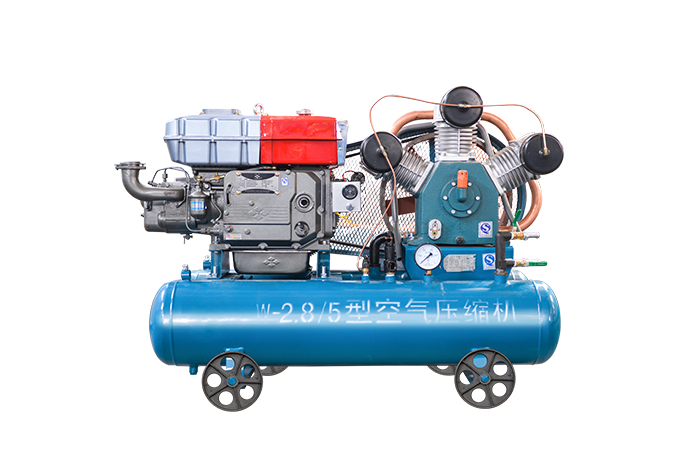

Diesel power Piston type air compressor

Contact Message
Product Parameter
Model: W-3.5/5
Air production: 3.5m³/min
Working pressure: 5bar
Cylinder Dia*Qty: 125mm*3
Warranty 1  years
Diesel engine:S20HP(S1115)
Size:1800*900*1300mm
Product Features
  • 01 Simple structure, ‌ long service life, ‌ easy to achieve large capacity and high pressure output, ‌ high thermal efficiency, ‌ strong adaptability, ‌ low cost and mature technology

  • 02  Strong large head, ‌ the use of high quality materials, ‌ low speed design, ‌ especially suitable for heavy load, ‌ long time continuous operation, ‌ provides high reliability and long life

  • 03  Special heat dissipation design and airflow design ensure low exhaust temperature, ‌ not easy to accumulate carbon, ‌ high efficiency

  • Handhold Pneumatic Rock drill

  • Handhold Pneumatic Rock drill

Model List
Model: W-3.5/5W-2.8/5W-3/5W-3.2/7W-1.8/5
Air production 3.5m³/min2.8m³/min3m³/min3.2m³/min1.8m³/min
Working pressure 5bar5bar5bar7bar64mm
Cylinder Dia*Qty 125mm*3115mm*3120mm*3125mm*3100mm*3
Diesel engine S20HP(S1115)20HP(S1115)20HP(S1115)25HP(S1125)15hp(S1100)
Size 1800*900*1300mm1780*870*1240mm1500*920*1100mm1960*900*1250mm1400*710*1000mm
Weight 600kg550kg600kg550kg320kg
FAQS
  • Q1:
    Are you factory or trade company?

    A1: We are factory. And we have ourselves trading company.

  • Q2:
    What the exactly address of your factory?

    A2: Our company is located in.Room 201, Building 23, No. 28 Yulong Road,Quzhou Zhejiang

  • Q2:
    Warranty terms of your machine?

    A3: One year warranty for the machine and technical support according to your needs.

  • Q4:
    Will you provide some spare parts of the machines?

    A4: Yes, of course.

  • Q5:
    What about the voltage of products??Can they be customized?

    A5: Yes, of course. The voltage can be customized according to yourequirement.

  • Q6:
    Which payment term can you accept?

    A6: 30% T/T in advanced, 70% T/T against the B/L copy.

  • Q7:
    How long will you take to arrange production?

    A7: 380V 50HZ we can delivery the goods within 7-15 days.Other electricityor other color we will delivery within 25-30 days.

  • Q8:
    Can you accept OEM orders?

    A8: Yes, with professional design team, OEM orders are highly welcome.

  • Q9:
    Which trade term can you accept?

    A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
